Tool Library: Measuring Tools
Measuring Tools Index
Caliper -- Digital Scale -- Environmental Meter -- Infrared Thermometer -- Laser Distance Measurer
Level & Magnetic Angle Locator -- Light Meter -- Micrometer -- Multimeter
Pocket Grain Weight Scale -- Power Monitor -- Sound Level Meter -- Tachometer
Tape Measure -- Triple Beam Balance -- Tubular Spring Scales -- Wireless Temperature Probe
Caliper, 6 Inch
Product Description:
- Resolution: 0.01mm/0.0005 inch
- Accuracy: 0.02mm/0.001 inch
Location: Box O, Box P, Box Q
Tool Sponsor: Geb Thomas
Infrared Thermometer
Product Description:
- Holds temperature readings for 7 seconds
- Wide temperature range from -40°C to 760°C (-40 °F to 1400 °F).
- Dual displays shows current and MAX measurements simultaneously
- Ergonomic handle with protective rubber boot
Location: Box B
Tool Sponsor: Geb Thomas
Light Meter
Product Description:
- Measures In Lux and Foot Candles (User Selectable)
- Long-Life Silicon Photo Diode Inside
- Over-Range Indicator - Measurement Rate: 1.5 Times per Second - Dimensions: 6.50-Inch H x 2.99-Inch W x 1.69-Inch D
- Auto Ranging - Max Range: 400,000 Lux - Weight: 14.22-Ounce
- Peak Hold, Max and Data Hold - Accuracy: +/- 5-Percent Under 10000 Lux, +/- 10-Percent Over 10000 Lux
- Relative Mode - Max Resolution: 0.1 Lux/FC
Location: Box T
Tool Sponsor: Geb Thomas
Pocket Grain Weight Scale
Product Description:
- Touchscreen scale with flip cover
Location: Box A
Tool Sponsor: Geb Thomas

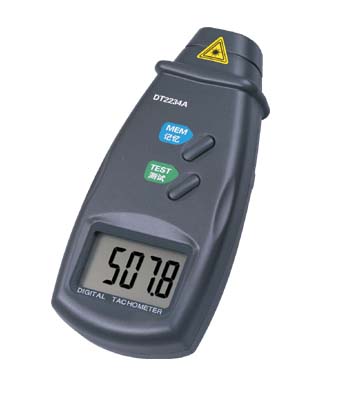

Tachometer
Product Description:
- RPM Range:2.5-99,999RPM
- Takes Accurage RPM Measurements Without Touching Object
- High Accuracy of .05%
- Auto-Zero Adjustment
- Detecting Distance: 50~500mm
Location: Box EEE
Tool Sponsor: Engineering Electronics Shop
Triple Beam Balance
Product Description:
- Readability: 0.1g
- Stainless steel plate size: 6" dial
- Scale dimensions: 12" W x 9" H x 18" D.
- Front beam calibration: 10g x 0.1g
- Middle beam calibration: 500g x 100g
- Rear beam calibration: 100g x 10g
Location: Box LL
Tool Sponsor: Geb Thomas
Vibration Meter
Baromter
Nebulizer
Force Guage
Colorimeter
Thermoanemometer

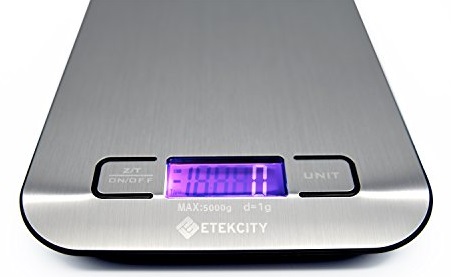

Digital Scale
Product Description:
- Weight Capacity 5,000g
- Units: g, ml, oz, lb’oz
Location: Box FFF
Tool Sponsor: Engineering Electronics Shop

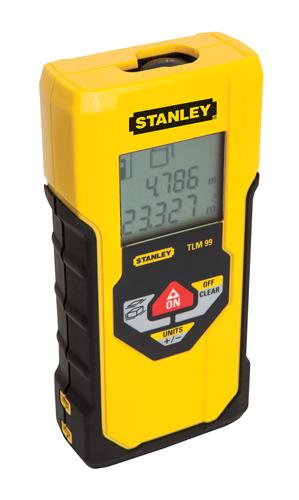

Laser Distance Measurer
Product Description:
- Range 100' (30m) Accuracy +/- 3/22" (2mm)
- Meaures Distance, Caluclates Area & Volume
- Automatic caluculations make job estimates quick & easy
- Continuous Measurement Tracking Function
- Finds distance from a target quickly & easily
- Addition/Subtraction. Convenient way to calculate in the field without a calculator or manual math
Location: Box WW
Tool Sponsor: Engineering Technology Centers

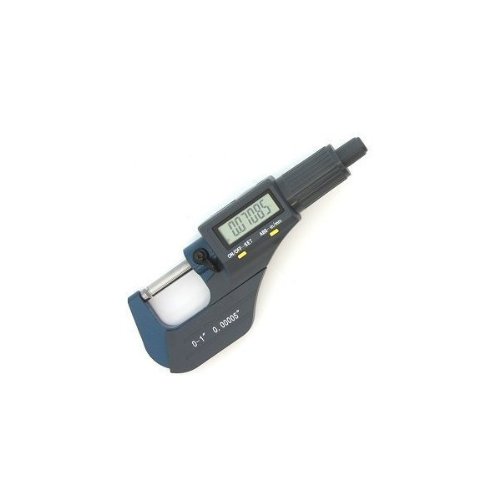

Micrometer, Outside
Product Description:
- 2 measuring modes Metric/Standard
- Large LCD Display
- Absolute & Incremental Modes
- Automatic Switch Off
- Accuracy +/- 0.00016"
- Range 0-1"/0-25mm
- Resolution 0.00005"/0.001mm
- Direct RS232 SPS Output
- Meet or Exceeds Federal Accuracy Standards
Location: Box H
Tool Sponsor: Geb Thomas
Power Monitor (Watt)
Product Features:
- Includes one Kill A Watt EZ Power Monitor P3
- Shows the operating costs of your household appliances
- Accurate to within 0.2%
- Large LCD Display
- Calculates cost and forecasts by week, month and year
- Built-in battery backup
- Displays eight critical units of measure (voltage, current, watts, kilowatt hours, frequency, volt amps, power factor, elapsed time
Location: Box XX
Tool Sponsor: Engineering Technology Centers
Tape Measure, 25 Foot
Product Description:
- Self locking mechanism
- Retraction push button
- Nylon coated blade for maximum durability
- Printed fractional graduations
- 25'' x 1"
Location: Box L, Box M, Box N
Tool Sponsor: Geb Thomas
Tubular Spring Scales
Product Description:
5000g Yellow: 5000g spring balance. Dual mass spring scales to measure force (Newtons) and mass (grams). 5000gr - Yellow (Newton graduations begin at 0 and are marked at each 10" increment up to "50". Gram graduations begin at "0" and are marked at each "1000" gram increment up to 5000.) | |
3000g/30N White: 3000g spring balance. Dual mass spring scales to measure force (Newtons) and mass (grams). 3000gr - White (Newton graduations begin at 0 and are marked at each 5" increment up to "30". Gram graduations begin at "0" and are marked at each "500" gram increment up to 3000.) | |
![]() |
1000g/10N Brown: Tubular 1000g spring balance. Dual mass spring scales to measure force (Newtons) and mass (grams). 1000gr - Brown (Newton graduations begin at 0 and are marked at each 1" increment up to "10". Gram graduations begin at "0" and are marked at each "100" gram increment up to 1000.) |
500g/5N Green: 500g spring balance.Dual mass spring scales to measure force (Newtons) and mass (grams). 500gr - Green (Newton graduations begin at 0 and are marked at each .5" increment up to "5". Gram graduations begin at "0" and are marked at each "50" gram increment up to "500".) |
Location: Box DD, Box EE
Tool Sponsor: Geb Thomas
Hand Dynamometer
Rangefinder
Surface Finish Gauge
Environmental Meter
Product Description:
- Anemometer uses a low-friction ball bearing mounted wheel design for high accuracy.
- Humidity meter uses a high precision humidity sensor for fast response time.
- Light meter uses a photo diode and color correction filter light sensor; spectrum meets C.I.E. photopic.
- Type K thermometer uses standard type K (NiCr-NiAl) thermocouple input jack suitable for diverse application type K probes.
- Sound level meter meets IEC 61672 class 2 with "A" frequency weighting and "Fast" time response.
Location: Box MM
Tool Sponsor: Engineering Electronics Shop
Level & Magnetic Angle Locator
Product Description:
- Magnetic Angle Locator
- High Impact Body In Hi Visibility Orange
- 90 Degrees In 4 Quadrants Grooved Edge
- Metric Rule On 1 Edge & English Rule On The Other
Location: Box I
Tool Sponsor: Geb Thomas
Multimeter (Voltmeter)
Product Description:
Calibrated Specifications Voltage DC Accuracy
- ± (0.09%+2) Max. Resolution: 0.1 mV Maximum 1000 V Voltage AC Accuracy
- ± (1.0%+3) Max. Resolution: 0.1 mV Maximum: 1000 V Current DC Accuracy
- ± (1.0%+3) Max. Resolution: 0.01 mA Maximum: 10 A Current AC Accuracy
- ± (1.5%+3) Max. Resolution: 0.01 mA Maximum: 10 A Resistance Accuracy
- ± (0.9%+1) Max. Resolution: 0.1 ? Maximum: 50 M? Capacitance Accuracy
- ± (1.2%+2) Max. Resolution: 1 nF Maximum: 10,000 °F Frequency Accuracy
- ± (0.1%+1) Max. Resolution: 0.01 Hz Maximum: 100 kHz Temperature Accuracy
- ± (1.0%+10) Max. Resolution: 0.1°C Range: -40°C/400°C
Note: Accuracies are best accuracies for each function Environmental Specifications Operating Temperature: -10°C to +50°C Storage Temperature: -30°C to +60°C Humidity (Without Condensation): 0% - 90% (0°C - 35°C) 0% - 70% (35°C -50°C) Safety Specifications Overvoltage category: EN 61010-1 to 1000 V CAT III. EN 61010-1 to 600 V CAT IV. Agency Approvals: UL, CSA, TUV listed and VDE Pending Mechanical & General Specifications.
Location: Box C, Box D
Tool Sponsor: Geb Thomas
Sound Level Meter
Product Description:
- USB interface with datalogging software
- Internal datalogging of up to 20,000 records A and C weighting
- Selectable fast / slow response time
- Analog bargraph display
- Large 1999 count backlit LCD display analog bargraph and numerous on-screen icons
- USB interface with included cable and datalogging software
- Included AC adaptor or battery operation
- Selectable MIN or MAX hold and data hold function
- Three measurement ranges
- Threaded insert which accepts standard tripod mount
- 0.1dB resolution
- Selectable auto-power-off
- Removable windscreen
- Includes manual and 9V battery
Measurement ranges:
- Low: 30 ~ 80dB
- Medium: 50 ~ 100dB
- High: 80 ~ 130dB
- Auto: 30 ~ 130dB
Specifications:
- Frequency range: 31.5Hz ~ 8KHz
- Microphone element: 1/4" electret condenser
- Sample rate: 0.5 seconds
- Time weighting: 125mS (fast), 1 Sec. (slow)
- Accuracy: ±1.4dB @ 1KHz, 94dB
- DC output: 10mV/dB, 1KΩ load
- AC output: 1VRMS per each range step, 100Ω load
- Dimensions: 9¾" (L) x 2½" (W) x 1" (D)
Location: Box KK
Tool Sponsor: Geb Thomas

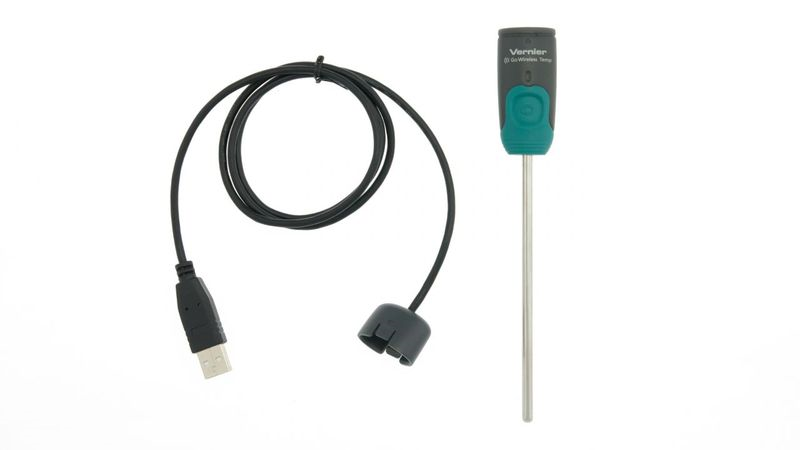

Wireless Temperature Probe
Product Description:
- Download "Vernier Graphical Analysis" App from the App Store or Google Play and get graphical data sent directly to your smartphone.
Location: Box BBB
Tool Sponsor: Engineering Electronics Shop
